DUDLEY DIX YACHT DESIGN

Amateur Projects -
Mount Gay 30 Stefano Karatasitsas


This series of photos of their Mount Gay 30 project came from Stefano Karatasitsas and friends, in Greece. Thanks guys, for your contribution.

Mount Gay 30 plywood boat plans

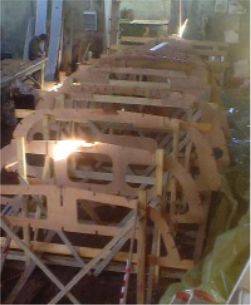

All bulkheads set up and ready for longitudinals. The slots for hull and deck stringers and other longitudinals can be seen.

Mount Gay 30 plywood boat plans
Backbone and hull stringers fitted. The backbone has also been planed to the slight V-shape of the hull bottom.

Mount Gay 30 plywood boat plans
Notching the stringers into the stem. The backbone and the knee joining it to the stem have been fitted but the backbone must still be trimmed back to its final line. The sheer clamps have also been fitted.

Mount Gay 30 plywood boat plans

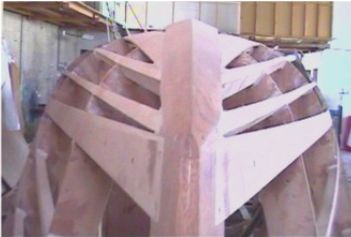

View of the forefoot looking aft. The backbone has been planed to the V-shape of the bottom and faired into the stem. The two narrow stringers are to receive the radiused skin panels. The two wider stringers above and below them are the tangent stringers at the junctions of flat skin panels with the radius.

Mount Gay 30 plywood boat plans

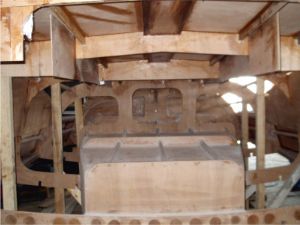

Looking aft from the saloon toward the transom. The cockpit has already been built, with the hull still upside down.

Mount Gay 30 plywood boat plans

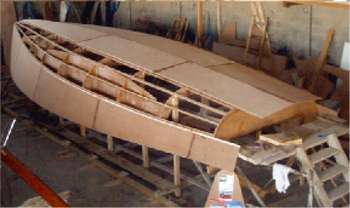

The hull skin panels of sides and bottom have been completed and await the radius to be skinned. The settee and tank fronts have already been fitted and can be seen between the stringers.
