DUDLEY DIX YACHT DESIGN

Amateur Projects - Hout Bay 33
of Francisco Rego


Francisco Rego is building his Hout Bay 33 in Santo Tirso, Portugal.

Radius chine steel boat plans for amateur boatbuilders

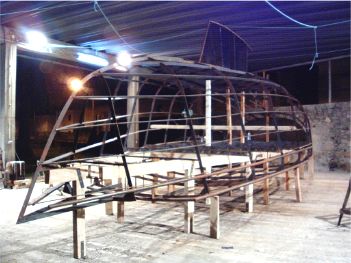

Here he has all frames set up and stringers fitted. He has also chosen to fit the framing of the keel at this stage.

Radius chine steel boat plans for amateur boatbuilders
Francisco is fitting the radius plates first. Later the edges of thse plates will be trimmed back to tangent line intersections with the side and bottom plates.

Radius chine steel boat plans for amateur boatbuilders

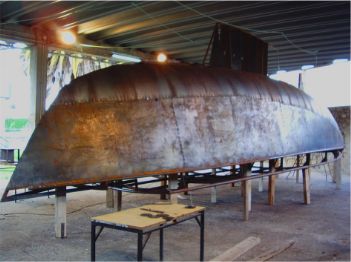

All hull plating fitted and tacked in place ready for welding.

Radius chine steel boat plans for amateur boatbuilders

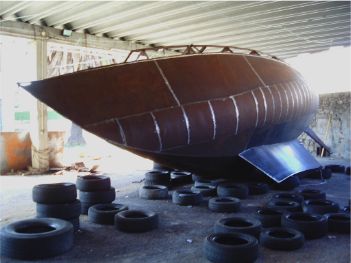

In process of rolling upright. Francisco is rolling the hull on tyres to protect it from damage.

Radius chine steel boat plans for amateur boatbuilders
Same stage, from the other side.

Radius chine steel boat plans for amateur boatbuilders

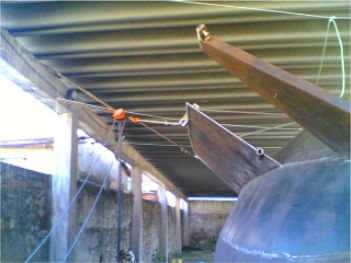

Francisco used chainblocks and hydraulic jacks to turn the hull over.

Radius chine steel boat plans for amateur boatbuilders
Hull welding completed and keel plated. With the hull turned upright, it now looks like a boat. Francisco's hull looks nice and fair.

Radius chine steel boat plans for amateur boatbuilders

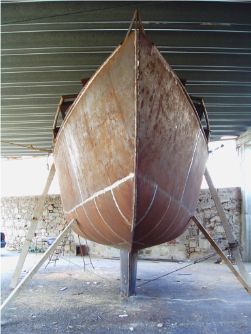

Same stage looking from forward. He has done a nice job of the radius plating.
