DUDLEY DIX YACHT DESIGN

Cape Henry 21 Build Photos

Page 7 - Deck Fittings
Back to Builders' Notes

Cape Henry 21 lapstrake plywood boat kits

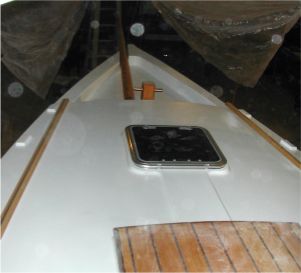

Companion hatch and foredeck hatch. The slightly raised section between them is the flat on which the mast tabernacle will be mounted.

Cape Henry 21 lapstrake plywood boat kits

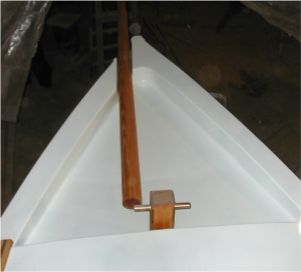

Foredeck with bowsprit and samson post. The bowsprit is not yet mounted in its bracket.

Cape Henry 21 lapstrake plywood boat kits

Same stage looking aft. The mounds along the deck edge are the bases onto which the timber toerail will be fitted. The toerail is lying loose on the deck in this photo.

Cape Henry 21 lapstrake plywood boat kits

Recess in foredeck bulwark for bowsprit.

Cape Henry 21 lapstrake plywood boat kits

Completed foredeck. The bowsprit is mounted in the hinged stainless steel heel fitting, allowing it to lie along the sidedeck.

Cape Henry 21 lapstrake plywood boat kits

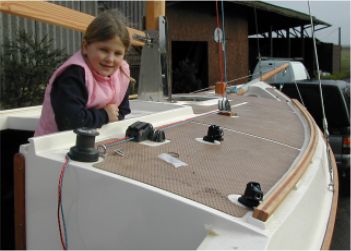

Overview of deck hardware. Port and starboard sides are the same.

Cape Henry 21 lapstrake plywood boat kits

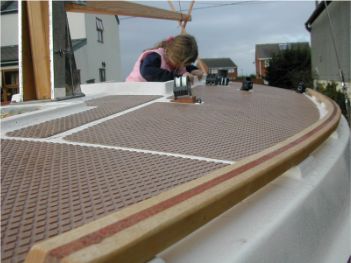

Close-up view of toerail. Gary has laminated it from contrasting timbers.
