DUDLEY DIX YACHT DESIGN



Hout Bay 50

Traditional steel schooners

Hout Bay 50 cruising version

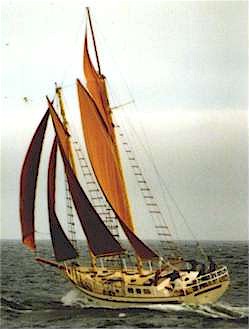

Hout Bay 50 "Cape Rose"

Pretty boats with sailing ability

~ Multiple rig options

~ Multiple layout options

~ Trunk cabin with aft cockpit or pilothouse with poop deck

~ Semi-cargo option with 10 ton cargo capacity

~ Excursion version with 40-50 passenger capacity in large cockpit

~ Marconi or gaff schooner options
MENU
Home
Overview
Email
Designs
Materials
Articles
Testimonials
Bookstore

PRICES

ORDERS
Fax/Mail
Credit Card

LINKS
Boat Sites
Communities
General

TRANSLATE

Hout Bay 50 "Cape Rose"

Hout Bay 50 "Cape Rose" interior

Hout Bay 50 "Cape Rose" interior

Hout Bay 50 "Cape Rose" on Table Bay

Hout Bay 50 excursion version

Hout Bay 50 underbody

Click on photos to enlarge

Hout Bay 50 excursion version

Hout Bay 50 semi cargo

The first version of this yacht was the excursion schooner, with a 40 to 50 passenger capacity depending on licencing authority. It was drawn with a traditional appearance to bring to mind tall ships and salty adventures and attract people to a first sailing experience. Below the water she was given a modern underbody for good performance and manoeuvreability in tight harbours. She proved to be seaworthy, comfortable and a good boat on all points of sail. Her combination of traditional gaff rig and modern underbody gave her performance and helm response which surprise most who sail on her.

She is a good reaching boat but, unlike many gaff riggers, she is powerful to windward as well. It is not necessary to crank up the engine to get off a lee shore. This is a very stable and seaworthy design, with excursion boats built to these plans carrying passengers in almost all wind and sea conditions. The wind speed at which they stop operating is 50 knots.

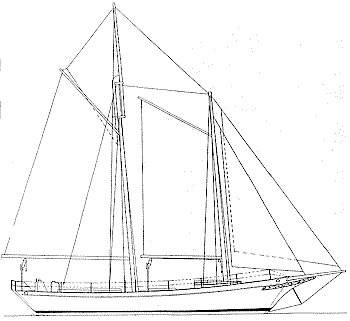

Hout Bay 50 multi-chine steel excursion schooner
40-50 Passenger excursion schooner

From this was developed the cruising version with trunk cabin and aft cockpit. It has a very comfortable interior, with four double cabins and large open living areas designed around a central engine position. "Cape Rose", the first of these boats, once covered 1200 miles in 6 days under sail, phenomenal for a steel cruiser.

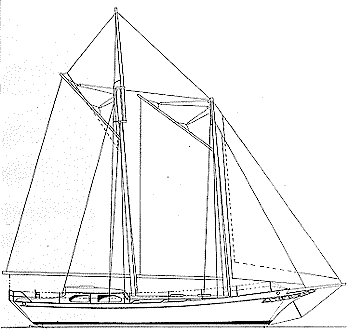

Hout Bay 50 multi-chine steel cruiser
Cruising version ~ Aft cockpit and trunk cabin

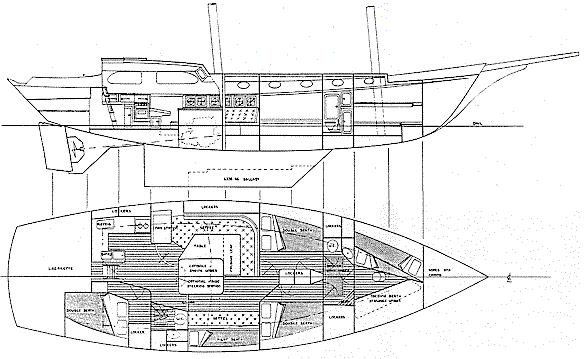

Hout Bay 50 cruiser accommodation
Cruising version ~ Aft cockpit and trunk cabin

The poop deck and pilothouse semi-cargo version was drawn for a 3-owner consortium who each wanted a private en-suite cabin along with pilothouse and cargo space convertible to additional accommodation. It was given a double topmast rig for power to move the increased weight due to cargo and more structure aft. The cargo space has a large cargo hatch opening up almost the entire cabintop and a smaller skylight hatch for loading smaller items. Powering can be either single or twin engines under the pilothouse sole. Maximum cargo weight is 10 tonnes. For a dedicated cargo carrier concept with 25 tonnes capacity see the Cargo 50.

The semi-cargo version is also available with marconi staysail schooner rig, giving easier handling. A non-cargo cruising interior with three double cabins has also been drawn, featuring a large owner's cabin under the poop deck.

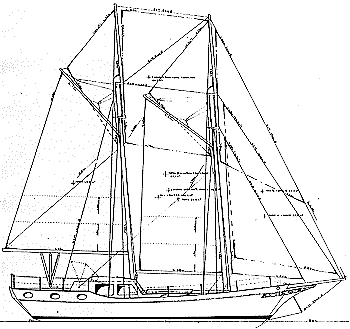

Poop deck and pilothouse with gaff rig

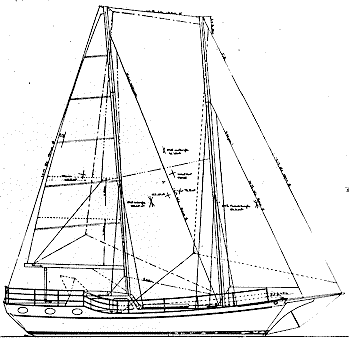

Poop deck and pilothouse with marconi rig

Hout Bay 50 "Sunlore" version

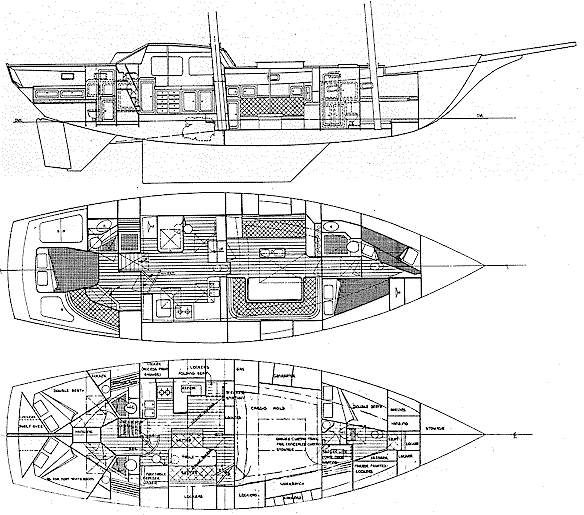

Poop deck /pilothouse versions for cruising and semi-cargo

Hull construction is of multi-chine steel for ease and speed of construction but with the topside chine radiused in section so that she has the appearance of a round bilge boat when on the water. She has a long fin keel and a substantial skeg and rudder well aft. Ballast is all lead or 50/50 lead and scrap steel and is placed at the bottom of the keel with tankage above.

For the DIY builder with a smallish budget, the gaff rig will be the least costly. Expensive hardware is kept to a minimum and muscle is applied to halliards by means of tackles rather than winches, using hand made wood faced blocks. Galvanised rigging is used for the gaff rig versions, further reducing costs. The marconi rig uses stainless steel rigging and more harware.

Hout Bay 50 hull section

This design provides the timeless appeal and value of a traditional yacht combined with the space benefits of a modern interior and the handling improvements of a modern underbody. It provides a yacht well able to carry her crew in comfort and safety in all conditions.

For a smaller design in this concept, see the Hout Bay 40.

Follow these links to a material list for the structure of the cruising version, a stability graph and a list of drawings for this design.

CHARACTERISTICS

LOA 18.55m (60'10") LOD 15.30m (50'2") LWL 12.00m (39'3") Beam 4.80m (15'9")
Draft 1.97m (6'5") Displacement to DWL 20650kg (45513lb) Ballast (lead/steel) 6330kg (13951lb) Prismatic Coef 0,57
Block Coef 0,41 Area Waterplane 33.8sq.m (364sq.ft) Immersion Rate 346kg/cm (1937lb/inch) Fineness Coef 0.68
Displacement/Length 333 Sail Area - Cruiser 119.3sq.m (1284sq.ft) Sail Area - Semi-cargo 137.1sq.m (1476sq.ft) Sail Area Marconi - 164.6sq.m (1772sq.ft)
Righting Moment @ 30 deg (excursion version) 14438kgm (104430ft.lb) Righting Moment @ 60 deg (excursion version) 13500kgm (97646ft.lb) Righting Moment @ 90 deg (excursion version) 6949kgm (50262ft.lb) Powering 75-100hp or 2x50-75hp

Please note that our plan prices include for adding imperial measurements to our metric designs if needed by the buyer.
