DUDLEY DIX YACHT DESIGN

Didi Mini project at CKD BOATS

Page 10- Turned Over - Structure

Mini-transat radius chine plywood kits

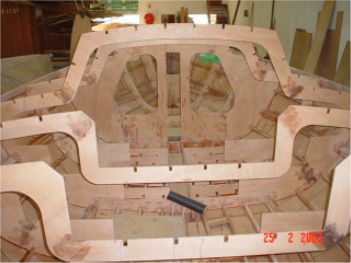

In this shot the plywood ring frames to support the deck can be seen.

Mini-transat radius chine plywood kits

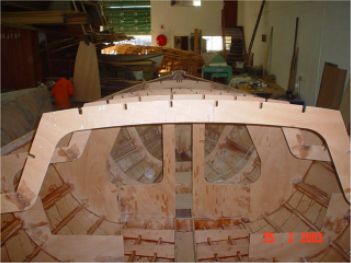

Looking forward from the stern. The bulkhead with the narrow cutout on centreline is the mast bulkhead.

Mini-transat radius chine plywood kits

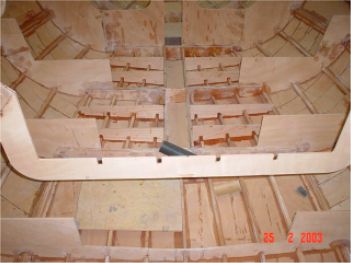

Backbone and floor structure to support the keel. This is a fixed keel version.

Mini-transat radius chine plywood kits

Looking forward along the cabintop structure.
