DUDLEY DIX YACHT DESIGN

Didi Mini project at CKD BOATS

Page 11 - Internal Structure

Mini-transat radius chine plywood kits

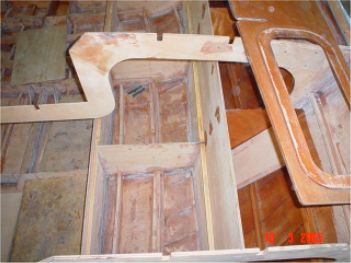

Dry fitting top and front of water ballast tank.

Mini-transat radius chine plywood kits

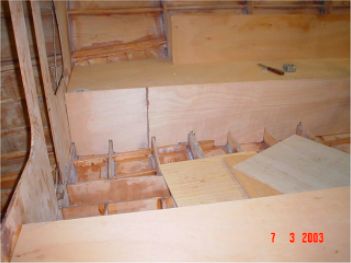

Dry fitting berths and water ballast tanks.

Mini-transat radius chine plywood kits

Berth & ballast tank fronts fitted & filleted.

Mini-transat radius chine plywood kits

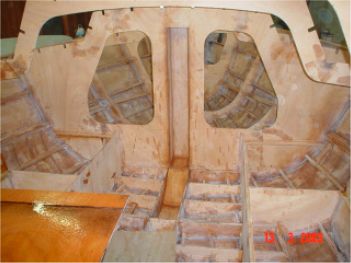

Same stage, viewed from above.

Mini-transat radius chine plywood kits

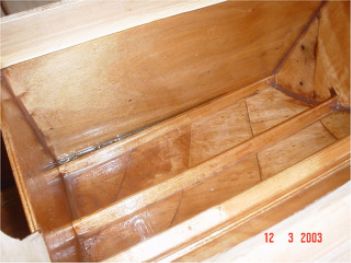

Insides of ballast tanks filleted and epoxied.

Mini-transat radius chine plywood kits

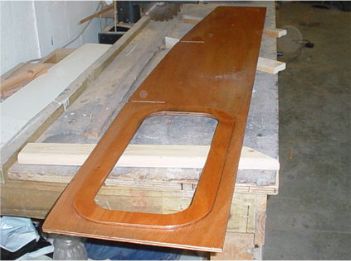

Ballast tank lid, lying upside down. The plywood trim around the opening allows the access cover to be set in flush and screwed down in flexible sealant.
