Page 12 - Deck Structure

Mini-transat radius chine plywood kits

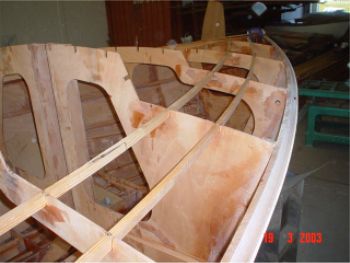

Sidedeck stringers fitted into slots in bulkheads.

Mini-transat radius chine plywood kits

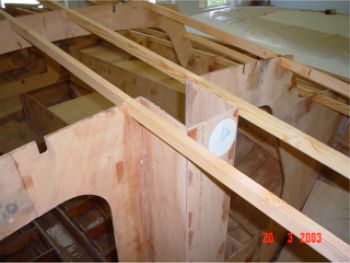

Main bulkhead with most of the stringers fitted. The cabin side stringer runs aft from this bulkhead to the cabin end. The stringer that ends in the middle of nowhere has been trimmed to the line and angle of the cabin side, against which it will stop.

Also visible in this photo is the boxing around the front of the mast. This ties the two halves of the bulkhead together to maximise strength, because the keel-stepped mast splits the bulkhead in the middle.

Mini-transat radius chine plywood kits

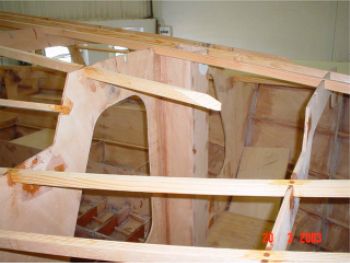

Same stage, with closer view of top of mast boxing.

Mini-transat radius chine plywood kits

All deck and cabin stringers fitted.

Mini-transat radius chine plywood kits

Cockpit stringers fitted.
