DUDLEY DIX YACHT DESIGN

Didi Mini project at CKD BOATS

Page 3 - Bulkhead setting up

Mini-transat radius chine plywood kits

Building stocks with bulkhead support legs accurately spaced, ready for bulkheads to be attached.

Mini-transat radius chine plywood kits

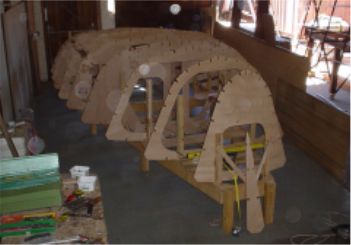

Bulkheads being set up on the building stocks. They must be accurately set up so that they are level, plumb, at the correct height and spaced the correct distance apart.

Mini-transat radius chine plywood kits

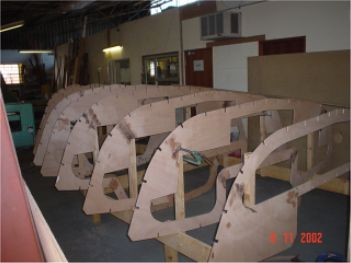

Bulkheads viewed from aft. Some of the glued scarph joints in the bulkheads can be seen.

Mini-transat radius chine plywood kits

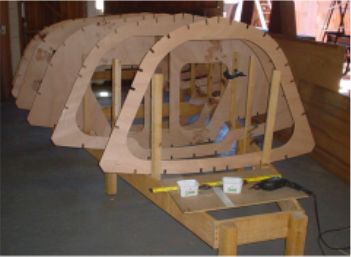

Same stage, viewed from forward.
