DUDLEY DIX YACHT DESIGN

Didi Mini project at CKD BOATS

Page 5 - Keel supports

Mini-transat radius chine plywood kits

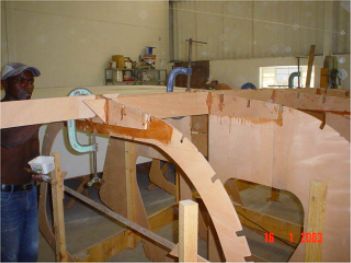

In this photo the configuration of the backbone can be seen. In the bow and stern it is in one piece on centreline. In the middle it is in two parts, forming a box structure for the keel support.

Mini-transat radius chine plywood kits

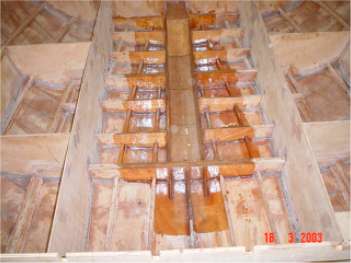

Clearer detail of the backbone. The double section supports the keel and the mast loads. In this photo, the intermediate plywood floor timbers have still to be fitted.

Mini-transat radius chine plywood kits

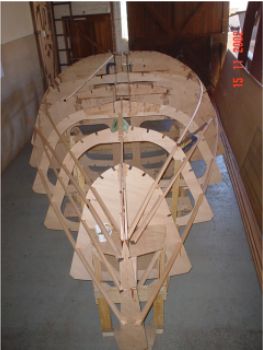

Backbone forward of the mast bulkhead.

Mini-transat radius chine plywood kits

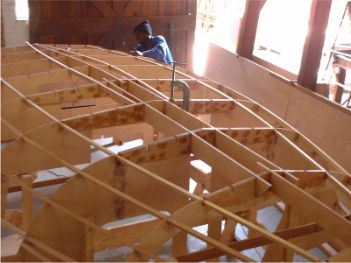

Backbone forward of the mast bulkhead, looking from below after fitting bottom skin.

Mini-transat radius chine plywood kits

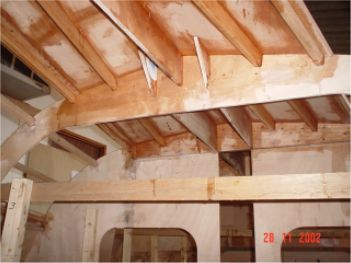

Hull bottom structure reinforced with biaxial glass fabric in epoxy in keel area.
