Building the Paper Jet
Page 2

Build Photos 1
Sailing Photos
Return to Paper Jet

This series of photos shows the basics of constructing the Paper Jet. The building instructions that are supplied with the plans include 200 photos, illustrating every aspect of construction.

Paper Jet plywood boat kits

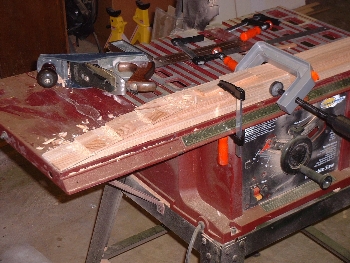

Scarphing staves for wooden mast.

Paper Jet plywood boat kits

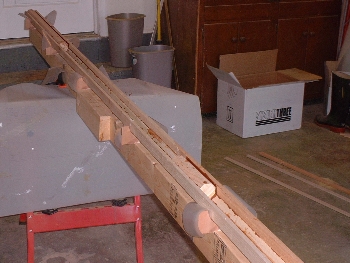

Assembling wooden mast over solid cores in stressed areas.

Paper Jet plywood boat kits

Mast assembly and shaping completed.

Paper Jet plywood boat kits

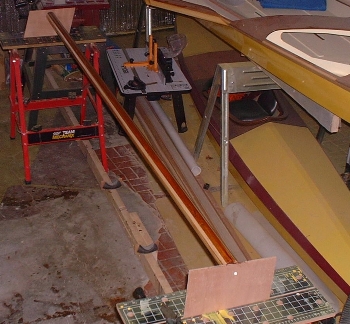

Boom completed, epoxied and varnished.

Paper Jet plywood boat kits

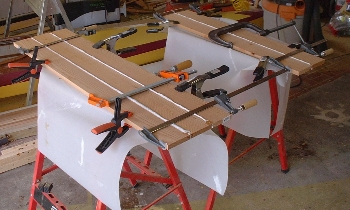

Gluing up blanks for foils.

Paper Jet plywood boat kits

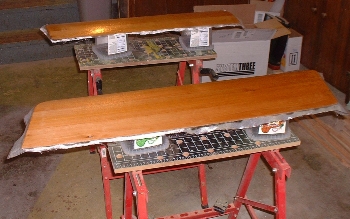

Foils shaped and being glassed.

Paper Jet plywood boat kits

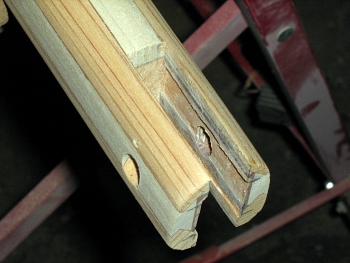

Mast joining collar, to connect two sections of mast.

Paper Jet plywood boat kits

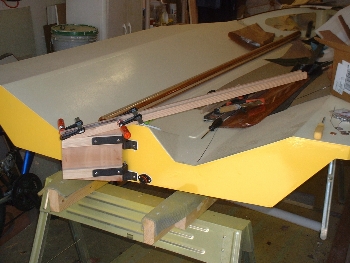

Sail track being glued onto topmast.

Paper Jet plywood boat kits

Slot for main halliard sheave.

Paper Jet plywood boat kits

Rudder head and tiller.

Paper Jet plywood boat kits

Completed Paper Jet with Standard rig.

Paper Jet plywood boat kits

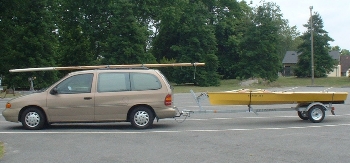

Completed Paper Jet on trailer.
