DUDLEY DIX YACHT DESIGN

Pratique 35 steel kit sailboat project of Peter Weston

Page 14 - Stern Tube & Propeller Aperture

Pratique 35 steel boat kits

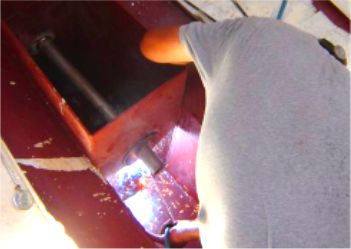

The stern tube is fitted through holes in the keel floors and welded in place. It has a disk doubler plate where it passes through the tank end, to make welding to the end easier.

Pratique 35 steel boat kits

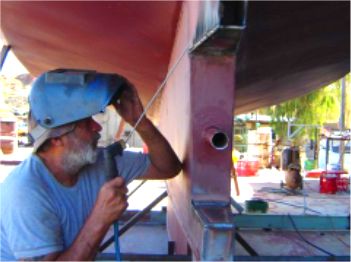

Basic structure of propeller opening plated and welding almost complete.

Pratique 35 steel boat kits

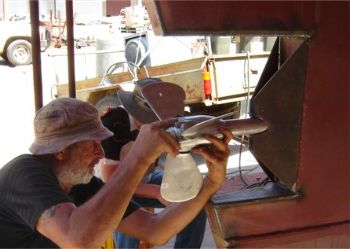

First pair of fairing plates fitted and propeller being checked for fit.

Pratique 35 steel boat kits

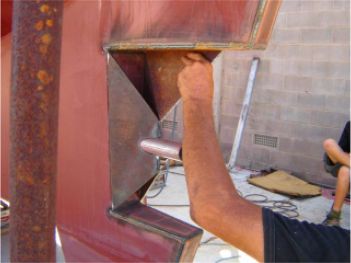

Upper fairing plates being fitted.

Pratique 35 steel boat kits

Propeller aperture completed and primed.
