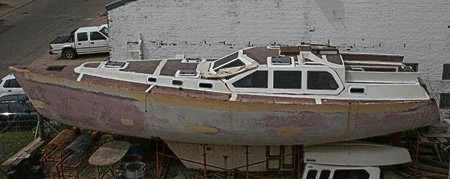

HULL
5MM STEEL RADIUS CHINED WITH FRAMES AND STRINGERS, 2 INTEGRAL TANKS IN BILGE, OF APROX. 900L
¾ KEEL WITH 4 TONS OF LEAD IN PLACE
RUDDER TUBE AND SKEG FITTED
TOPSIDES SANDBLASTED, PRIMED AND FAIRED TO WATERLINE
INSIDE SANDBLASTED, PRIMED, PAINTED WITH EPOXY TAR
HULL BUILT TO DESIGN SPECIFICATIONS

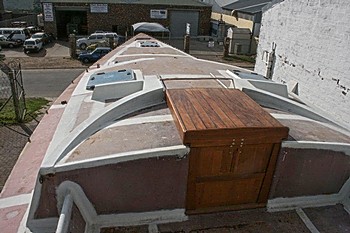

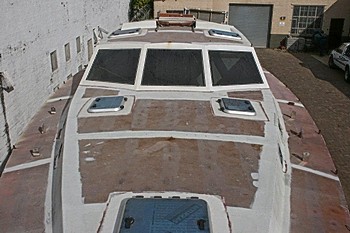

DECK
3MM STEEL PLATE ON FRAMES AND STRINGERS AS PER DESIGN SPECIFACATIONS
SANBLASTED AND PRIMED
ALL SURROUNDS TO WINDOWS, PORTHOLES AND HATCHES, PAINTED AS PER ‘INTERNATIONAL’ PAINT SCHEDULE

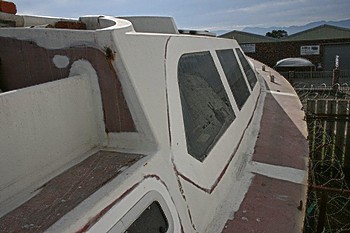

9 OFF 12MM LAMINATED GREY TINT GLASS WINDOWS FITTED
2 OFF WPO 30 HATCHES FITTED
3 OFF WPO 50 HATCHES FITTED
10 OFF OPENING PORTLIGHTS FITTED
MIDSHIPS STAINLESS STEEL CHAINPLATES FITTED
IROKO COMPANIONWAY HATCH AND WASHBOARDS DRY FITTED
INSULATION
HULL- 40MM CLOSED CELL SPRAYED ON POLYURETHANE FOAM TO STRINGER BELOW WATERLINE
6MM EXTERIOR PLY CLADDING FIXED TO CLEATS FIXED TO STRINGERS
100X40MM PVC CONDUIT FITTED PRIOR TO FOAMING, RUNNING FULL LENGTH OF STBD SIDE
DECK HEAD- 30MM FOAM AS ABOVE WITH 25MM PVC CONDUIT FITTED PRIOR TO FOAMING FOR LIGHTING

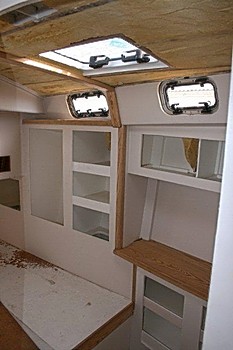

INTERIOR WOODWORK
FRAMEWORK- MERANTI
BULKHEADS- 15MM EXTERIOR PLY
CUPBOARDS, LOCKERS AND BERTHS- 12 AND 9MM EXTERIOR PLY
COUNTER TOPS, CORNERS, FIDDLES, FRAMES, DOORS AND TRIM OF VARNISHED ASH

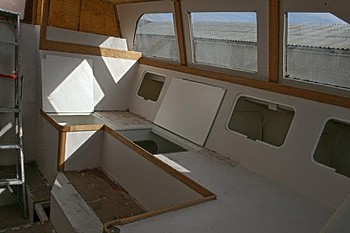

INTERIOR LAYOUT
3 DOUBLE CABINS

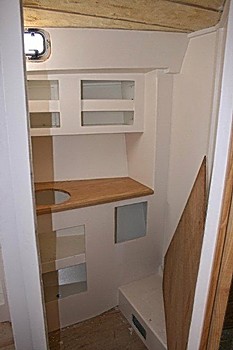

2 HEADS, 1 AS EN-SUITE TO AFT CABIN

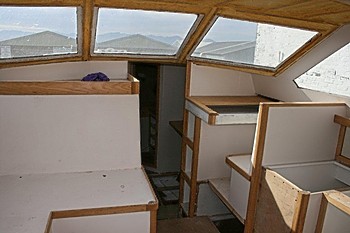

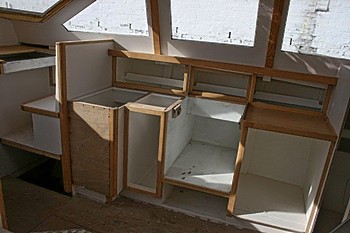

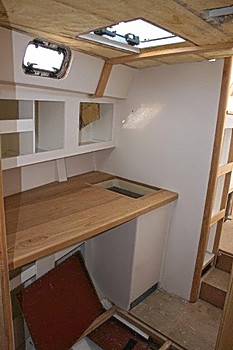

RAISED SALOON WITH GALLEY AND NAV STATION ON STBD SIDE, WORKSHOP MIDSHIPS
FINISHES
ALL PLY READY FOR FINAL PAINT
ALL ASH READY FOR FINAL VARNISH
TANKS AND LIDS NEED SOME RUST REMOVED AND PAINTED. LIDS NEED FITTING AND SEALING
SOME PARTS OF BILGE NEED RUST REMOVED AND PAINTING
INVENTORY
MAST- NEW UNUSED 2005 AS PER SPARCRAFT SPECS FOR DIX 43 WITH ALL STANDING RIGGING, RUNNING RIGGING. ANDERSON ST40 WINCH. BOOM AND BOOM VANG. PROFURL NCI 42. INNER FORESTAY WITH ADJUSTER. SPINNAKER POLE. ETC ETC . COST- R205,000.00
ENGINE- NOT FITTED- NEW UNUSED 2006 VETUS 65HP VH465H52A, WITH ANGLED HYDRAULIC GEARBOX. BULLFLEX COUPLING AND SPACER. STERN TUBE- NOT FITTED. VETUS ZWB40 SHAFT SEAL. COST- R75,000.00
RUDDER- NOT FITTED. SEMI BALANCED WITH 75MM STAINLESS STEEL SHAFT
.ANCHOR 65LB CQR
STOVE- FORCE 10. 3 PLATE- NEW UNUSED. COST- R12,500.00
CORIAN CUSTOM MADE SINK TOP
DOUBLE BOWL STAINLESS STEEL SINK WITH TAP AND SPRAY ROSE
2 SINKS FOR HEADS
40L HOT WATER CYLINDER
3 OPENING PORTLIGHTS
SALOON TABLE TOP- ASH
ALL CABIN AND HEAD DOORS, FRAMES AND HARDWARE
MOST OF CUPBOARD DOORS, FRAMES AND HARDWARE
ALARM SYSTEM- CELLSECURE E6 SMS COMMUNICATOR- NOT FITTED
RAYMARINE ST60 WIND SYSTEM
|
