DUDLEY DIX YACHT DESIGN

Bigakat 12

12ft Wood or GRP catamaran

Bigakat 12 wooden catamaran

Amateur-build catamaran

~ Modern concept

~ Easy launch and retrieval

~ Plywood & strip construction

~ Great family or school project

~ Wood or GRP construction

~ Bigger sister to Oppikat junior catamaran

~ Pre-cut plywood kits available soon

~ Flickr Album

 MENU
Home
Overview
Email
Designs
Materials
Articles
Testimonials
Bookstore

PRICES

ORDERS
Fax/Mail
Credit Card

LINKS
Boat Sites
Communities
General

TRANSLATE
The little 9ft Oppikat has been built in nearly 20 countries around the world as one-off projects. Although intended for junior sailors to sail single- or double-handed, builders have reported that dad loves to sail the boat also, either by himself or with one of the juniors.

I have been asked many times by potential builders if we have a similar but bigger cat that they can build for themselves. Until now the answer was no. But now we do have what they were looking for, we have the Bigakat 12.

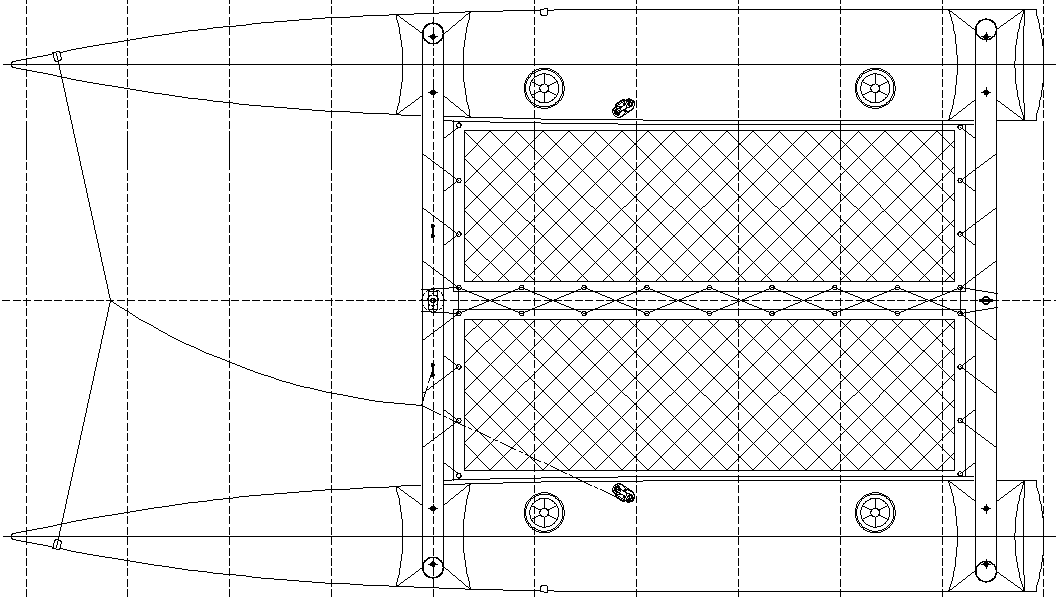

The Bigakat 12 is primarily intended for wood construction by amateurs, requiring moderate woodworking skills. Bulkheads, transoms, decks and the upper panels of the hull sides are all easily made from 4mm plywood. The lower sides and bottoms of the hulls are skinned with 6mm strip cedar and sheathed with a light layer of glass cloth in epoxy resin. Each hull is built over 4 permanent bulkheads and 5 temporary ones, which are set up upside-down on a board that can be mounted on a large table, workbench or sawhorses.Once skinned and glassed, the hull is removed from the board, the temporary bulkheads removed from inside the hull. Thosee temporary bulkheads are then set up on the board again with new permanent bulkheads to build the second hull. After waterproofing the insides with two coats of epoxy, the decks are fitted.

Bigakat 12 wooden catamaran

The overall image is modern, in the style of racing cats. The keels, constructed onto the bottoms of the hulls, give windward ability and a pivot point for tacking, without the complication of daggerboards. Their draft of 10.5" allows easy beaching and sailing in shallow water. The rudders have foil-shaped fixed blades for simplicity. They do not project below the keels so they have protection in shallow water to reduce the number of concerns for novice sailors.

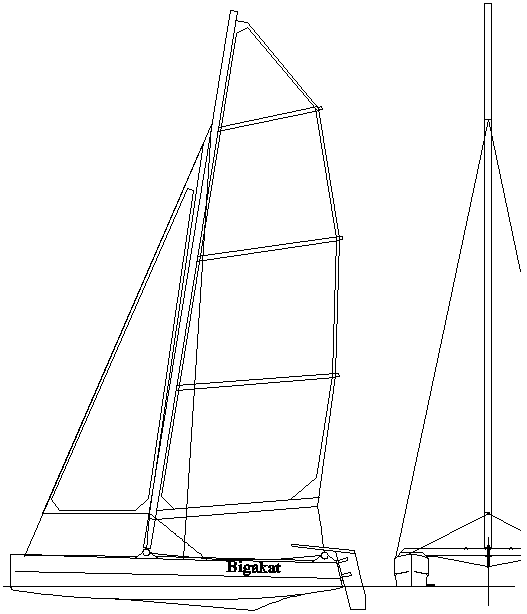

The rig uses a simple round tube aluminium mast with track screwed or rivetted on. The rigging is simple and comprises only a forestay and single shrouds, attached to the chainplates with lashings rather than bottle screws. The jib is on soft hanks or piston hanks over the forestay. The mainsail has a large roach and is fully battened. The large foot batten replaces a boom and is controlled by the mainsheet which runs on a wire bridle on the aft beam. Buoyancy material in the double skin top panel of the mainsail will assist with righting in the event of a capsize. Bigakat 12 can be sailed with mainsail alone or main and jib.

The standard plan package includes full-size paper patterns of all bulkheads and transom, overlaid on top of each other. We also offer option full size patterns of bulkheads, transom, hull side and deck, with the bulkheads alongside each other for easier use.

List of Drawings

List of Wood Materials

Bigakat 12 wooden catamaran

CHARACTERISTICS

LOA 3.72m (12'2")

LWL 3.72m (12'2")

Beam overall 2.10m (6'10")

Draft 0,27m (10.5")

Weight Approx 95kg (200lb)

 Mast length 6.10m (20'0")

Mainsail 7.83sq.m (84sq.ft)

Jib 2.5sq.m (27sq.ft)
Please note that our plan prices include for adding imperial measurements to our metric designs if needed by the buyer.
