DUDLEY DIX YACHT DESIGN



Didi 26 project at CKD BOATS

Page 4 - Deck skin

Didi 26 radius chine plywood kits

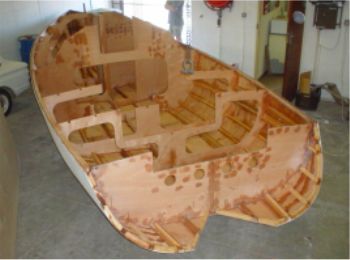

Hull turned and ready for deck structure to be fitted. We don't have any photos of the deck stringers but the slots in the tops of the bulkheads are visible, ready to receive the deck stringers. Click here to see a similar stringer system fitted to the Didi Mini.

This particular boat has planing boards, which are non-standard. In this photo they are being framed to receive the deck skin.

Didi 26 radius chine plywood kits

Deck skin of planing boards fitted and still to be trimmed.

Didi 26 radius chine plywood kits

Side and aft deck skin fitted. The builder has chosen to do the cockpit after the aft decks, I would build the cockpit first then fit the aft decks.

Didi 26 radius chine plywood kits

Cockpit sides fitted

Didi 26 radius chine plywood kits

Cockpit complete.

Didi 26 radius chine plywood kits

Cabin top and side panels bing fitted.

Didi 26 radius chine plywood kits

Deck and cabin complete.
